Smooth & Precise Panel Feeding
Advance‑Level Edge Banding Machine --Affordable, Easy to Operate
In China we understand the need for exceptionally good after-sales service that’s part of our mantra, ‘Affordable Machinery, First Class Service. Now with 12 months warranty.
User-Friendly Design
Customers appreciate the Spartan range for its intuitive control system and reliable performance, making it an excellent choice for beginners in CNC operation.
Built for Industrial Applications
Customers appreciate the Spartan range for its intuitive control system and reliable performance, making it an excellent choice for beginners in CNC operation.
Best-Selling Affordable CNC Router
Searching for a dependable yet budget-friendly CNC Router? The our best-selling model, offering unmatched reliability at an unbeatable price.
All World Warranty
Delivery Included
Installation Included
Our Most Popular CNC Router
Exceptional Service
High Performance and Cost-Effective Standard Edge Banding Machine
Our SPF506JSK edge banding machines enable you to get started with industrial fabrication in a highly professional way. These edge banders deliver the highest quality in edge processing with minimum floor space requirements and at a lower price. They can master all aspects of edge processing and perform necessary tasks with the required edging materials perfectly by automating essential functions.
Easy One-Man Operation
Uncomplicated one-man operation through the automation of essential functions
Industrial Edge Processing Solution
Designed for industrial use and specifically for edge jointing, edge banding and finish machining & fine finishing of edgings
Best-Selling
High-rigidity, solid beam frame construction
Double banded top pressure belt for optimally and gently feeding short panels and sensitive surfaces through the machine
Electronic Pressure Control
Electronically adjustable top pressure track
Automatic Profile Change System
Multi-profile technology with automatic profile change can be utilized
Advance Level – Edge banders for getting started with industrial fabrication
The SPF506 more than meets the requirements of industrial edge processing. The edge bander that allows you to apply solid wood lippings up 12 mm thick as well as coiled materials using EVA or PUR glue ensures high product quality and is easy to use. All processing units of this machine have optimal motor power. This allows for high availability paired with excellent repetition accuracy and service life.
PLC Touch Screen Control System
The intelligent PLC touch screen control system offers an intuitive interface for easy operation, precise parameter adjustment, and real-time monitoring — ensuring stable performance and efficient production management.
Program-controlled feed speed
Digitally adjusts feed speed for optimal edge quality and efficient production.
Work Width Within
Panel support device positionable within the working width
Secure Material Clamping
Use the built-in T-slot clamping system to securely hold awkward or warped materials in place .
Efficient Vacuum Systems
The range features powerful vacuum systems for secure material holding, with the number of vacuum pumps dependent on the model.
Durable Industrial Construction
Built to industrial standards, edge banders machine deliver reliable performance and longevity while providing excellent value.
Dependable and User-Friendly
edge banders machine feature intuitive controls and reliable operation, offering users an outstanding experience and consistent results.
Adaptable and Versatile
Ideal for start-ups and growing businesses, edge banders machine are used across industries and handle a wide range of materials with precision and ease.
Multiple Optional Configurations
A wide range of optional units and accessories are available to meet diverse processing needs and enhance production flexibility.
Flexible Power Configurations
The range features powerful vacuum systems for secure material holding, with the number of vacuum pumps dependent on the model.
Applications Across Industries
Edge banders machine are versatile machines used in industries like joinery, boat building, sign making, engineering, cladding, and personalised product manufacturing.
Finance Options Available
Partnering with Percy Finance Ltd, we offer eligible customers flexible financing options to spread the cost of machinery purchases. Subject to status and a minimum trading period of two years.
Professional Installation and Training
Our expert installation team provides setup and comprehensive safety training, ensuring you’re confident in operating the machine before they leave your premises.
Reliable Aftersales Support
Our after-sales service is world based and available to all of our customers if needed. Lifetime technical support via email and telephone.
Comprehensive Warranty Coverage
Our Edge banders machine are backed by a 12-month parts and labour warranty, excluding consumables, providing peace of mind for your investment.
Reliable, High Quality Edge Banding Machine
at an Affordable Price
Our SPF506JSK allows you to apply coiled materials using glue, such as EVA or PUR, or a diode laser. The included spare location can be fitted with a grooving, smoothing or sanding unit. Thanks to its good standard equipment, flexibility and automation, the Novimat Compact R3 is an edge bandier that performs its tasks with absolute reliability. In this process, feed speeds of up to 12 m/min and a quick glue change using the tried and tested IMA quick-lock system enable the machine to perform cost-effective, high-quality edge banding without any restrictions.
Compare Our most popular Ranges
Compare our most popular ranges of Edge Banding Machine to help you decide upon which model would suit you best.
SPF506 Edge Banding Machine with 6 Function
Entry Level
- Features:
Glue Pot(for EVA glue)
End cutting
Rough trimming
Fine trimming
Scraping
Buffing - control system:PLC Touch Screen Control System
- Pressing unit: 3-wheel pressing unit
- Conveying method : Pressure roller + chain conveyor system
- feed speeds: 12m/min
- Electrical components: Schneider
- Optional/Upgrade:
1） Pre-milling function unit
2） Grooving unit
3） Corner rounding unit
4） Flexible edge scraping
5） Two under glue pot (for white and colored EVA glue)
6） Upper Glue pot( for Particulate EVA and Particulate PUR)
7） PUR hot melt adhesive equipment + PUR clean-free glue pot
8）Aluminum alloy feeding conveyor, suitable for large sheet , up to approximately 2 meters wide. - Warranty: 12 months parts and labour
SPF506PC Edge Banding Machine with 8 Function
Standard Level
- Features:
Pre-milling unit
Glue Pot
End cutting
Rough trimming
Fine trimming
Corner rounding
Scraping
Buffing - control system:PLC Touch Screen Control System
- Pressing unit: 3-wheel pressing unit
- Conveying method : Pressure roller + chain conveyor system
- feed speeds: Three-level speed adjustment: 16m/min-18m/min-20m/min
- Electrical components: Schneider
- Optional/Upgrade:
1） Grooving unit
2）Flexible edge scraping
3） Two under glue pot (for white and colored EVA glue)
4） Upper Glue pot +Pre-melted glue box
5） PUR hot melt adhesive equipment + PUR clean-free glue pot
6）Aluminum alloy feeding conveyor, suitable for large sheet , up to approximately 2 meters wide.
7） Belt/roller return conveyor line (improves work efficiency) - Warranty: 12 months parts and labour
SPF468P Edge Banding Machine with 8 Function
Prefessional Level
- Features:
Pre-milling unit
Glue Pot
End cutting
Rough trimming
Fine trimming
Corner rounding
Scraping
Buffing - control system:PLC Touch Screen Control System
- Pressing unit: 6-wheel pressing unit
- Conveying method : Pressure roller + chain conveyor system
- feed speeds: Three-level speed adjustment: 16m/min-18m/min-20m/min
- Electrical components: Siemens
- Optional/Upgrade:
1） Grooving unit
2）Flexible edge scraping
3） Two under glue pot (for white and colored EVA glue)
4） Upper Glue pot +Pre-melted glue box
5） PUR hot melt adhesive equipment + PUR clean-free glue pot
6）Aluminum alloy feeding conveyor, suitable for large sheet , up to approximately 2 meters wide.
7） Belt/roller return conveyor line (improves work efficiency) - Warranty: 12 months parts and labour

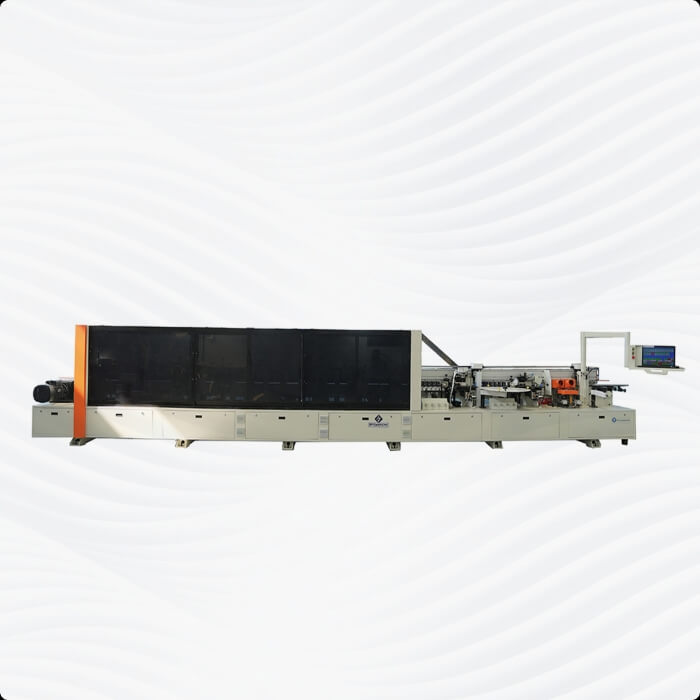

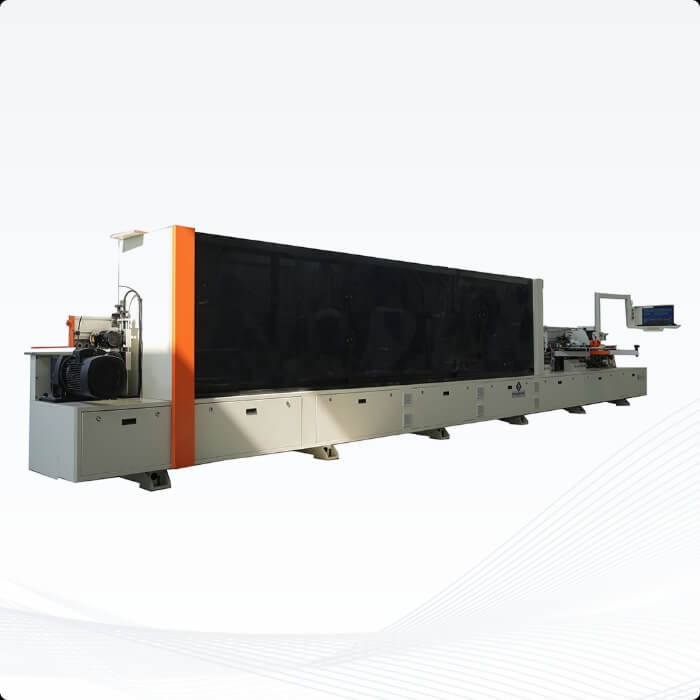

SPF468JSK Edge Banding Machine with 10 Function
Advanced Level
- Features:
Pre-milling unit
Glue Pot 1
Glue Pot 2
End cutting
Rough trimming
Fine trimming
Corner rounding
Scraping
Buffing 1
Buffing 2 - control system:PLC Touch Screen Control System
- Pressing unit: 6-wheel pressing unit
- Conveying method : Pressure roller + chain conveyor system
- feed speeds: Three-level speed adjustment: 16m/min-18m/min-20m/min
- Electrical components: Siemens
- Optional/Upgrade:
1） Grooving unit
2） Flexible edge scraping
3） Upper Glue pot +Pre-melted glue box
4） PUR hot melt adhesive equipment + PUR clean-free glue pot
5）Aluminum alloy feeding conveyor, suitable for large sheet , up to approximately 2 meters wide.
6） Belt/roller return conveyor line (improves work efficiency) - Warranty: 12 months parts and labour
Laser Edge Banding Machine
Advanced Level
- Features:
Pre-milling unit
Power of laser generator:2000w (option: 3000w)
End cutting
Rough trimming
Fine trimming
Corner rounding
Scraping
Buffing - control system:Control System with large display screen, mouse, keyboard
- Pressing unit: 6-wheel pressing unit
- Conveying method : Tracked conveyor system: Uniform contact surface pressure, strong load-bearing capacity, and high speed.
- feed speeds: Three-level speed adjustment: 16m/min-18m/min-20m/min
- Electrical components: Siemens
- Optional/Upgrade:
1) Flexible edge scraping
2) Extra under glue pot (for EVA glue)
3）Upper Glue pot +Pre-melted glue box
4）PUR hot melt adhesive equipment + PUR clean-free glue pot （for liquid PUR adhesive）
5）Aluminum alloy feeding conveyor, suitable for large sheet, up to approximately 2 meters wide.
6） Belt/roller return conveyor line (improves work efficiency) - Warranty: 12 months parts and labour
Our Edge Banding Machine are Great For
Custom Joinery
Industrial Design
Point of Sale
Custom Furniture
Personalised Products
Vehicle Plylining
Woodworking
Architectural Design
Campervan Conversions
Fabrication
Aerospace Applications
Exhibition and Stand Making
Product Design
Signmaking
Marine Applications
Shopfitting
Educational Use
Bespoke Products
Automotive
Set Design
