Standard‑Level Industrial Six-sided Drilling Machine
Six sided woodworking Drilling machine is mainly used to drill the holes, make the grooves as well as mill the parts.
User-Friendly Design
Customers appreciate the Spartan range for its intuitive control system and reliable performance, making it an excellent choice for beginners in CNC operation.
Built for Industrial Applications
Customers appreciate the Spartan range for its intuitive control system and reliable performance, making it an excellent choice for beginners in CNC operation.
Best-Selling Affordable CNC Router
Searching for a dependable yet budget-friendly CNC Router? The our best-selling model, offering unmatched reliability at an unbeatable price.
All World Warranty
Delivery Included
Installation Included
Our Most Popular CNC Router
Exceptional Service
Standard-Level Six-sided Drilling Machine:
Performance & Value
The parts go to the table, the positioning pops will be up to realize the positioning. The clampers clamp the parts and send the parts inside of the machine to make the drill, groove and mill based on the CAM software programs.
Using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
Taiwan Syntec control system + Taiwan Syntec servo motor
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
The gripper speed can reach up to 130m/min.
Combined with the automatic lifting and unloading table, multiple unloading options are convenient.
Automated wiring
Improve efficiency
About Our Standard-Level Six-sided Drilling Machines
Through out gantry structure equipped with upper and bottom drill banks as well as the spindles, makes the machine to process the side holes, vertical holes and the grooves at the same time. 6 sides holes can be processed in one time on this model, and it’s the good choice for the all kind of panel furniture factory.
Advanced Syntec CNC Control
Operate your CNC router effortlessly with the easy-to-use DSP hand controller. Import files via USB and manage all machine functions with a compact, user-friendly pendant system.
Comprehensive Software Package
Every Spartan CNC Router includes Vectric VCarve Pro software, a leading industry solution that simplifies design, nesting, and tooling configuration for efficient production.
High-Performance Spindles
Spartan CNC Routers are equipped with powerful spindles, with larger models featuring 6.0kW air-cooled spindles as standard for maximum efficiency and reliability.
Secure Material Clamping
Use the built-in T-slot clamping system to securely hold awkward or warped materials in place .
Efficient Vacuum Systems
The Spartan range features powerful vacuum systems for secure material holding, with the number of vacuum pumps dependent on the model.
Durable Industrial Construction
Built to industrial standards, CNC Routers deliver reliable performance and longevity while providing excellent value.
Dependable and User-Friendly
CNC Routers feature intuitive controls and reliable operation, offering users an outstanding experience and consistent results.
Adaptable and Versatile
Ideal for start-ups and growing businesses, CNC Routers are used across industries and handle a wide range of materials with precision and ease.
Multiple Table Size Options
CNC Routers are available in various sizes, including 600 x 900 mm, 1300 x 1300 mm, and up to 2000 x 3000 mm. Custom options are also available to suit your specific needs.
Flexible Power Configurations
The Spartan range features powerful vacuum systems for secure material holding, with the number of vacuum pumps dependent on the model.
Applications Across Industries
CNC Routers are versatile machines used in industries like joinery, boat building, sign making, engineering, cladding, and personalised product manufacturing.
Finance Options Available
Partnering with Percy Finance Ltd, we offer eligible customers flexible financing options to spread the cost of machinery purchases. Subject to status and a minimum trading period of two years.
Professional Installation and Training
Our expert installation team provides setup and comprehensive safety training, ensuring you’re confident in operating the machine before they leave your premises.
Reliable Aftersales Support
Our after-sales service is UK based and available to all of our customers if needed. Lifetime technical support via email and telephone.
Comprehensive Warranty Coverage
Our CNC Routers are backed by a 12-month parts and labour warranty, excluding consumables, providing peace of mind for your investment.
Reliable, High Quality Six-sided Drilling Machine at an Affordable Price
Compare Our most popular Ranges
SPM2812S Manual Six-sided drilling machine
Standard Level
- Working Table: Aerial floating table
- Processing Workpiece Length: 250-2800 mm
- Processing Workpiece Width: 50-1200 mm
- Processing Workpiece Thickness : 15-30 mm
- Drill Package Quantity
: Single upper drilling units +Single bottom drilling unit - Up vertical:12 pcs
- Upper level: 8 pcs
- Down vertical: 9 pcs
- Upper spindle: 3.5kw air cooled spindle
- Lower spindle: 3.5kw air cooled spindle
- Guide: Taiwan CSK / TBI /HIWIN Square Rails
- Control System :Taiwan Syntec control system
- Tool Control: Automatic
- Warranty: 12 months parts and labour

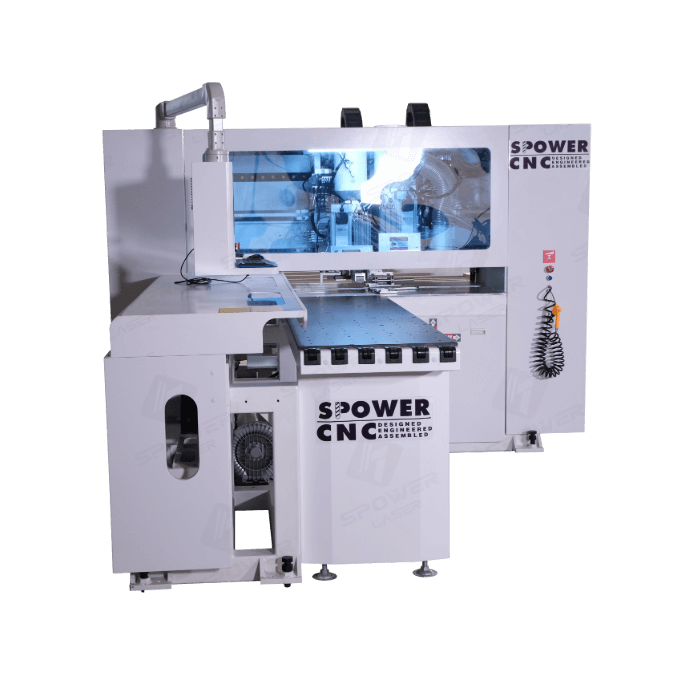

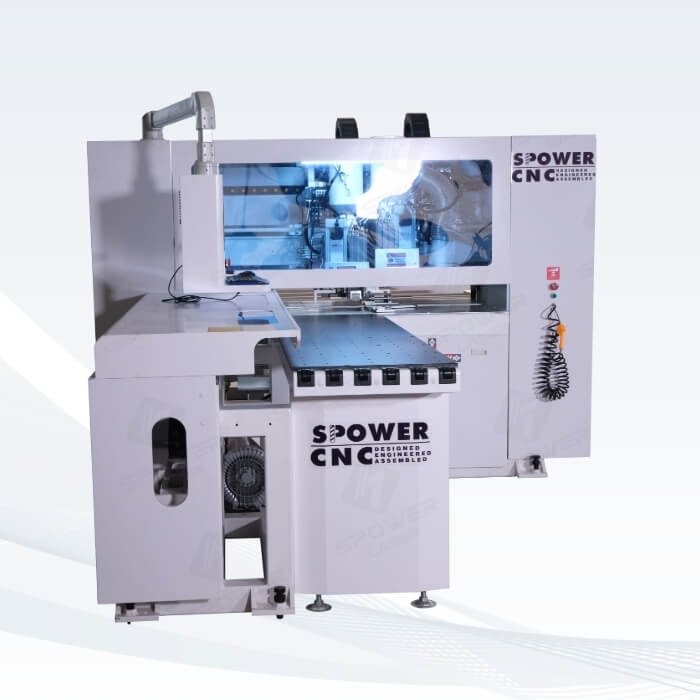

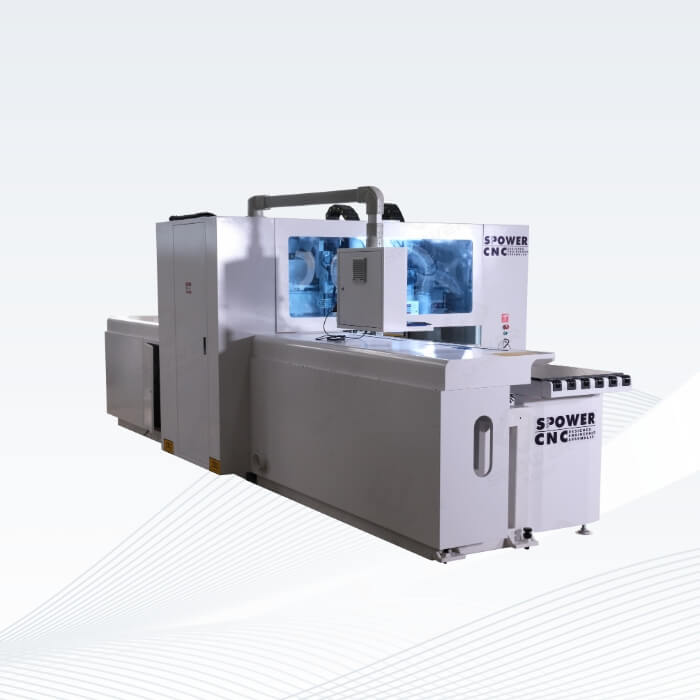

SPM2812D Manual Six-sided drilling machine
Standard Level
- Working Table: Aerial floating table
- Processing Workpiece Length: 250-2800 mm
- Processing Workpiece Width: 50-1200 mm
- Processing Workpiece Thickness : 15-30 mm
- Drill Package Quantity
: Double upper drilling units +Single bottom drilling unit - Up vertical:24 pcs
- Upper level: 16 pcs
- Down vertical: 9 pcs
- Upper spindle: 3.5kw air cooled spindle
- Lower spindle: 3.5kw air cooled spindle
- Guide: Taiwan CSK / TBI /HIWIN Square Rails
- Control System :Taiwan Syntec control system
- Tool Control: Automatic
- Warranty: 12 months parts and labour
SPM2812S ATC Six-sided drilling machine
Advanced Level
- Working Table: Aerial floating table
- Processing Workpiece Length: 250-2800 mm
- Processing Workpiece Width: 50-1200 mm
- Processing Workpiece Thickness : 15-30 mm
- Drill Package Quantity
:Single upper drilling units +Single bottom drilling unit - Up vertical:12 pcs
- Upper level: 8 pcs
- Down vertical: 9 pcs
- Upper spindle: 6.0kw air cooled spindle
- Lower spindle: 3.5kw air cooled spindle
- Guide: Taiwan CSK / TBI /HIWIN Square Rails
- Control System :Taiwan Syntec control system
- Tool Control: Automatic
- Warranty: 12 months parts and labour
SPM2812D ATC Six-sided drilling machine
Advanced Level
- Working Table: Aerial floating table
- Processing Workpiece Length: 250-2800 mm
- Processing Workpiece Width: 50-1200 mm
- Processing Workpiece Thickness : 15-30 mm
- Drill Package Quantity
: Double upper drilling units +Single bottom drilling unit - Up vertical:24 pcs
- Upper level: 16 pcs
- Down vertical: 9 pcs
- Upper spindle: 6.0kw air cooled spindle
- Lower spindle: 3.5kw air cooled spindle
- Guide: Taiwan CSK / TBI /HIWIN Square Rails
- Control System :Taiwan Syntec control system
- Tool Control: Automatic
- Warranty: 12 months parts and labour
