Table Moving 5 Axis machine Center
User-Friendly Design
Customers appreciate the Spartan range for its intuitive control system and reliable performance, making it an excellent choice for beginners in CNC operation.
Built for Industrial Applications
Customers appreciate the Spartan range for its intuitive control system and reliable performance, making it an excellent choice for beginners in CNC operation.
Best-Selling Affordable CNC Router
Searching for a dependable yet budget-friendly CNC Router? The our best-selling model, offering unmatched reliability at an unbeatable price.
All World Warranty
Delivery Included
Installation Included
Our Most Popular CNC Router
Exceptional Service
Professional 5 Axis CNC Router Machines - Exceptional Machining Capabilities
Features and Overview of the 5 Axis CNC Routers
Advanced Syntec CNC Control
Operate your CNC router effortlessly with the easy-to-use DSP hand controller. Import files via USB and manage all machine functions with a compact, user-friendly pendant system.
Comprehensive Software Package
Every Spartan CNC Router includes Vectric VCarve Pro software, a leading industry solution that simplifies design, nesting, and tooling configuration for efficient production.
High-Performance Spindles
Spartan CNC Routers are equipped with powerful spindles, with larger models featuring 6.0kW air-cooled spindles as standard for maximum efficiency and reliability.
Secure Material Clamping
Use the built-in T-slot clamping system to securely hold awkward or warped materials in place .
Efficient Vacuum Systems
The Spartan range features powerful vacuum systems for secure material holding, with the number of vacuum pumps dependent on the model.
Durable Industrial Construction
Built to industrial standards, CNC Routers deliver reliable performance and longevity while providing excellent value.
Dependable and User-Friendly
CNC Routers feature intuitive controls and reliable operation, offering users an outstanding experience and consistent results.
Adaptable and Versatile
Ideal for start-ups and growing businesses, CNC Routers are used across industries and handle a wide range of materials with precision and ease.
Multiple Table Size Options
CNC Routers are available in various sizes, including 600 x 900 mm, 1300 x 1300 mm, and up to 2000 x 3000 mm. Custom options are also available to suit your specific needs.
Flexible Power Configurations
The Spartan range features powerful vacuum systems for secure material holding, with the number of vacuum pumps dependent on the model.
Applications Across Industries
CNC Routers are versatile machines used in industries like joinery, boat building, sign making, engineering, cladding, and personalised product manufacturing.
Finance Options Available
Partnering with Percy Finance Ltd, we offer eligible customers flexible financing options to spread the cost of machinery purchases. Subject to status and a minimum trading period of two years.
Professional Installation and Training
Our expert installation team provides setup and comprehensive safety training, ensuring you’re confident in operating the machine before they leave your premises.
Reliable Aftersales Support
Our after-sales service is UK based and available to all of our customers if needed. Lifetime technical support via email and telephone.
Comprehensive Warranty Coverage
Our CNC Routers are backed by a 12-month parts and labour warranty, excluding consumables, providing peace of mind for your investment.
5 Axis CNC Systems Built for Industrial Grade Performance
Overview and Features
| Parameters | Standard Specifications CNC Router |
|---|---|
| X,Y,Z Working Area | 2100*6000*200mm|7′*20′ |
| Optional Working Area | 1300*1300*200mm|4′*4′ |
| 1300*2500*200mm|4′*8′ | |
| 1500*3000*200mm|5′*10′ | |
| 2000*3000*200mm|6′*10′ | |
| 2000*4000*200mm|6′*13′ |
|
| X,Y,Z Traveling Positioning Accuracy | ±0.03/2000mm |
| Table Surface | Vacuum table+T-solt table |
| X,Y,Z Rail and Trasmission | TBI/CSK/HIWIN Guide Rail XY,ball screw on Z, Grinding helical rack and pinion on XY |
| Command Language | G Code |
| Operating System | Taiwan Syntec Controller with MPG |
| Interface | USB |
| Software Compatibility | Vectric V Carve Pro/Cabinet Vision/Artcam/E wood |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
| Wood | Plastic | Composites and other |
|---|---|---|
| Oak | Acrylic | ACM (like Alcubond, Dibond) |
| Birch wood | Polycarbonate | Foamex |
| MFC | Tufnol | Composite Fibreboard |
| Plywood | PVC | Solid Surface (Corian etc) |
| Walnut | Peek | Carbon Fibre |
| Pine | ABS | Graphite |
| Leather | HPDE | Tool Box Foam |
| Redwood | HPL | Laminated Woods |
| OSB board | Plexiglass | Vermiculite Board |
| Cedar | Nylon | Trespa |
| Cherry | Delrin | Aluminium |
| Elm | Brass |
Compare Our most popular Ranges
PTP Machine Center
Professional Level
3 axis/4 axis/5 axis Machine Support
- Bed Sizes(mm):1300*2500*400mm|4′*8′
1300*3000*400mm|4′*10′
2000*3000*400mm|6′*10′
2000*4000*400mm|6′*13′
2000*6000*400mm|6′*20′
(custom sizes please ask). - 5 Axis Head:China 9.0kw HQD spindle/ Italy HSD 9.6kw spindle/ Italy Hiteco 13.5kW
- Drive Motors: High performance TaiWan Delta/ Japan Yaskawa Servo Motor+Japan Shimpo Reducer
- Mechanical Drive : TBI/CSK/HIWIN Guide Rail XY,ball screw on Z, Grinding helical rack and pinion on XY
- Control System: Taiwan Syntec Controller with RTCP
- Tool Control: Auto Tool Sensor
- Software: UG software,Alphacam, Powermill,Fushion 360
- Warranty: 36 months parts and labour
Standard Gantry Moving 5 Axis machine Center
Standard Level
And slotting, chamfering, drilling, milling groove and other multi-angle processing can be finished by machine.
- Bed Sizes (mm): 1300*2500*1000mm|4′*8′
1300*1300*1000mm|4′*4
2000*3000*1000mm|6′*10′
2000*4000*1000mm|6′*13′
2000*6000*1000mm|6′*20′
(custom sizes please ask). - 5 Axis Head: China HQD 9kw/12kw 5 Axis Head
- Drive Motors: Spower Servo Motor/TaiWan Delta+Japan Shimpo Reducer
- Mechanical Drive: TBI/CSK/HIWIN Guide Rail XY,ball screw on Z, Grinding helical rack and pinion on XY
- Control System: Spower control system or Taiwan Syntec Controller with RTCP
- Tool Control: Automatic tool Sensor
- Software: UG software,Alphacam, Powermill,Fushion 360
- Warranty: 36 months parts and labourInformation: Perfect for customers wanting a high performance machine without the cost.

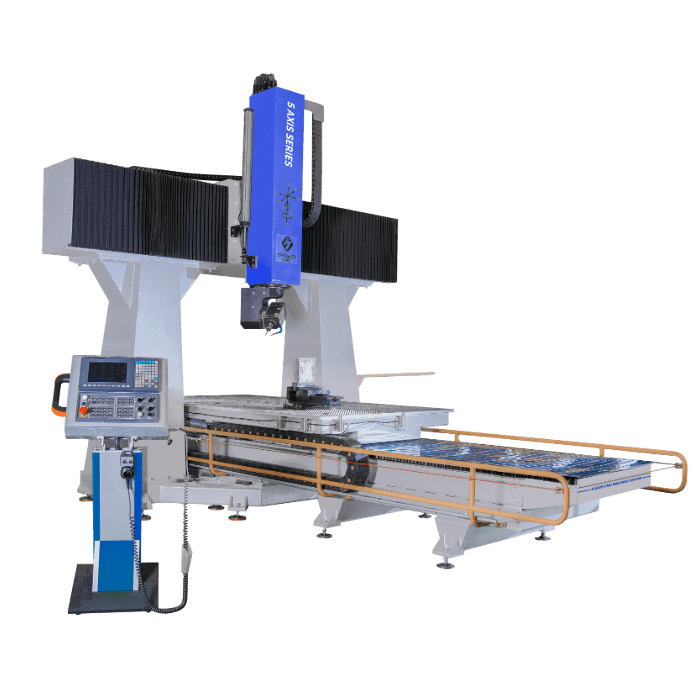

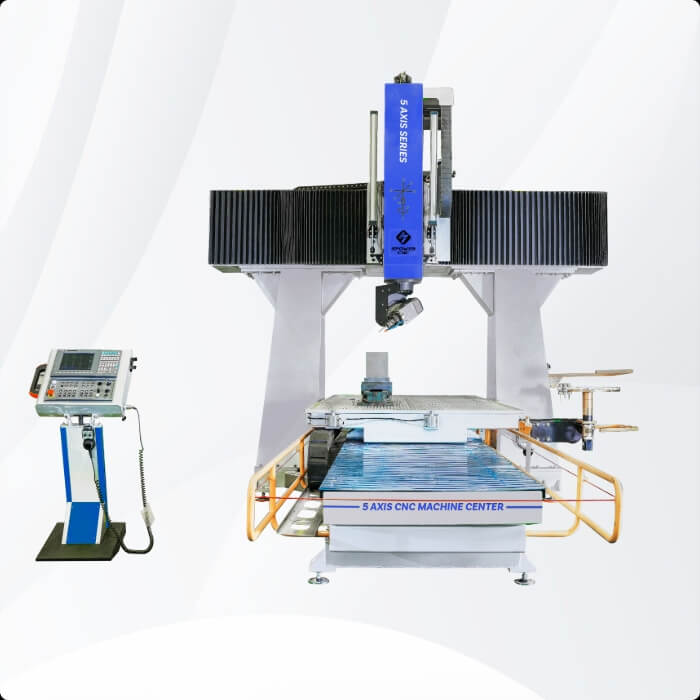

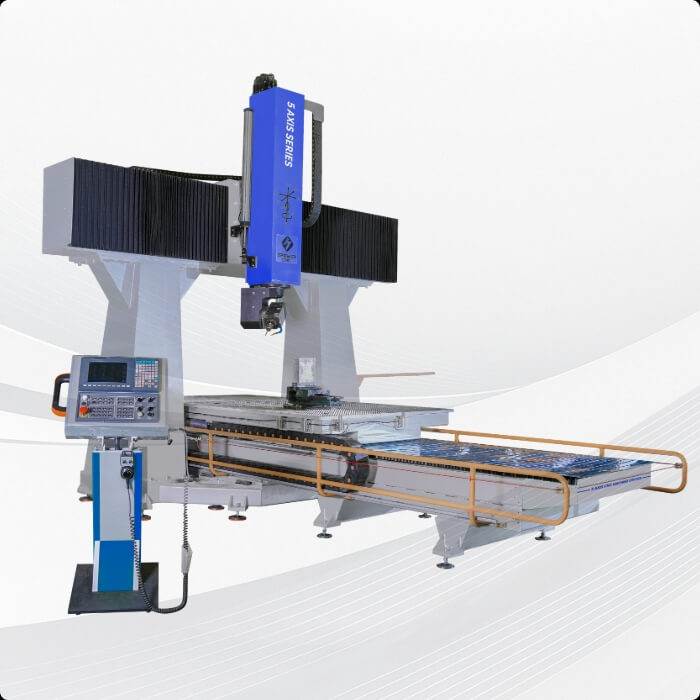

Table Moving 5 Axis machine Center
Prefessional Level
- Bed Sizes (mm): 1300*2500*200mm|4′*8′
1300*1300*200mm|4′*4
2000*3000*200mm|6′*10′
2000*4000*200mm|6′*13′
2000*6000*200mm|6′*20′
(custom sizes please ask). - 5 Axis Head: Italy HITECO 13.5kw liquid cooling spindle
- Drive Motors: Japan Yaskawa Servo Motor+Shimpo Reducer
- Mechanical Drive: Taiwan TBI Ball Screw on X, Y and Z axis
- Control System: Taiwan Syntec Controller 610MA-E5
with RTCP function with MPG - Tool Control: Automatic tool Sensor
- Software: UG software,Alphacam, Powermill,Fushion 360
- Warranty: 36 months parts and labourInformation: High-performance CNC router that’s been built like a tank. With ATC. X, Y and Z axis all use ball screw transmission, ensure high precision for 3d molds
Ultra Gantry Moving 5 Axis machine Center
Advanced Level
- Bed Sizes (mm): 2000*3000*1800mm
2000*4000*1800mm
3000*4000*1800mm
4000*8000*1800mm
4000*12000*1800mm
(custom sizes please ask). - 5 Axis Head: Italy HITECO 13.5kw liquid cooling spindle
- Drive Motors: Japan Yaskawa Servo Motor+Shimpo Reducer
- Mechanical Drive: TBI/CSK/HIWIN Guide Rail XY,ball screw on Z, Grinding helical rack and pinion on XY
- Control System: Taiwan Syntec Controller 610MA-E5
with RTCP function with MPG - Tool Control: Automatic tool Sensor
- Software: UG software,Alphacam, Powermill,Fushion 360
- Warranty: 36 months parts and labourInformation: Machine size, configuration, and structural design can all be customized according to customer requirements.
