3 Axis ATC CNC Router for Woodworking and Panel Processing
SPC1325C series CNC router with an automatic linear tool changer, Syntec control system, servo motor and driver, heavy-duty frame, and customizable working sizes for cabinet making, furniture production, signage, and industrial woodworking.
Global Warranty Support
Export Delivery Support
Installation Guidance
Popular ATC CNC Router
After-Sales Support
Key Features of the SPC1325C 3 Axis ATC CNC Router
Built for efficient woodworking and panel processing, the SPC1325C delivers stable ATC machining for cabinets, furniture, signage, and industrial wood production.

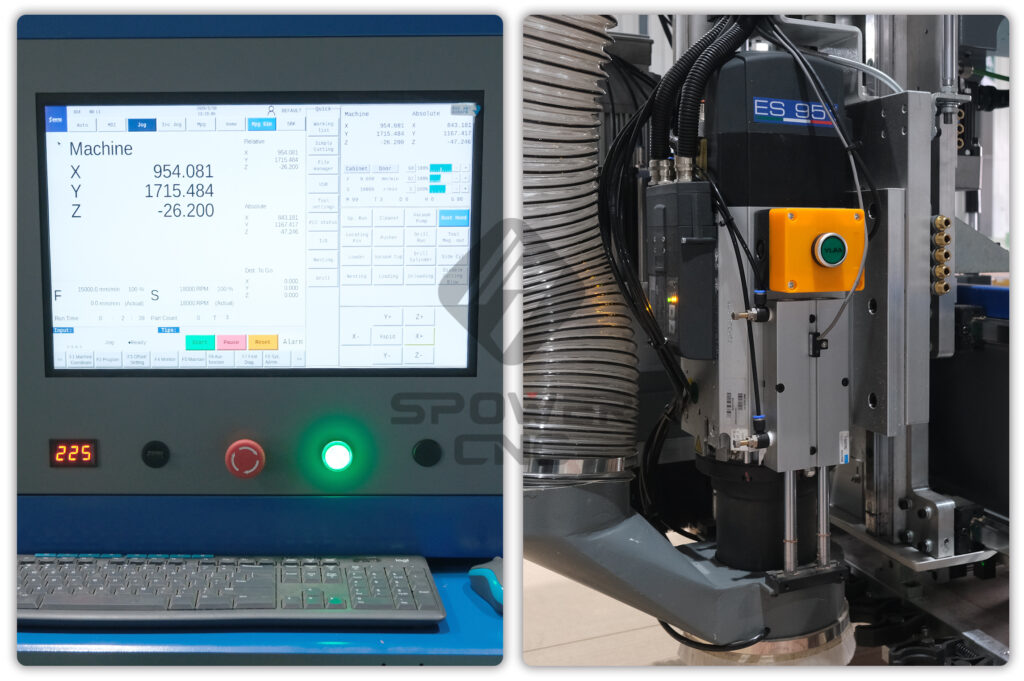

High-Performance CNC Controller
Syntec Controller FC 63WA servo control system. Supports high-speed 3-axis motion and precise 3D carving with smooth acceleration and accurate positioning. Easy to operate for both experienced users and beginners.
Powerful Electronic Spindle
9.0 kW HQD/CC, 9.5 kW HITECO, or 9.6 kW HSD Italian ATC spindles with ISO30 / HSK F63 tool holders. All three support automatic tool change. Pick based on your material, workload, and budget.
Linear Auto Tool Changer
8-tool linear magazine changes bits automatically during operation. Drilling, cutting, engraving, and grooving finish in one setup. Less downtime, more output for cabinet shops and furniture manufacturers.
Precision Panel Processing System
Full-size vacuum table with T-slot aluminum profiles holds panels securely. Cuts, drills, routes, and edge grooves full sheets in one workflow. Built for custom cabinetry, closet systems, and panel furniture production.

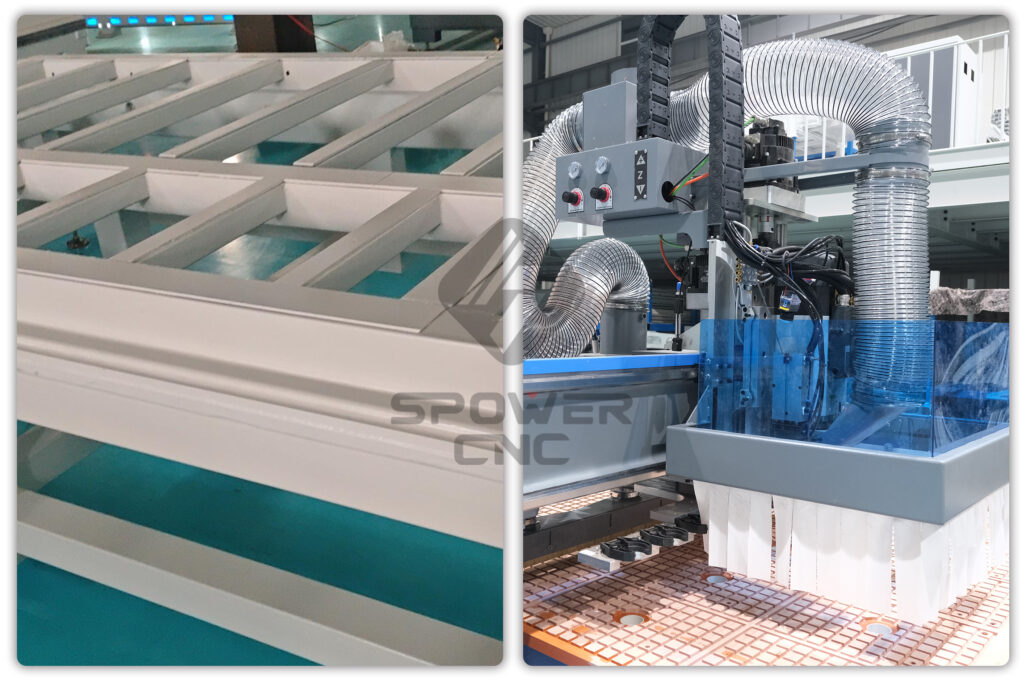

Dust-Free Adsorption System
Spower High efficiency CleanCut dust collect system. Dust hood connects to workshop extraction, and vacuum adsorption keeps the cutting area clean and workpieces stable. Enclosed cable chains cut down wear. Simple layout makes daily checks and maintenance easy.
Heavy-Duty Machine Frame
Welded steel gantry and stress-relieved base. Absorbs vibration, resists deformation during long high-speed runs. Stable cutting accuracy, longer life for spindle and components.
SPC1325C 3 Axis ATC CNC Router Technical Specifications
Review the main specifications, working size options, spindle configurations, control system, servo drive, and applicable materials for the SPC1325C series CNC router.
| Parameter | Specification |
|---|---|
| Machine Model | SPC1325C / SPC1530C / SPC2030C / SPC2040C |
| Machine Type | 3 Axis ATC CNC Router |
| Working Area Options | 1300 × 2500 × 200 mm / 1500 × 3000 × 200 mm / 2000 × 3000 × 200 mm / 2000 × 4000 × 200 mm |
| Tool Changer | 8-position ISO30 linear tool magazine |
| Spindle Options | China HQD 9.0 kW / Italian HITECO 9.5 kW / Italian HSD 9.6 kW |
| Control System | Taiwan Syntec Controller |
| Motor and Driver | Spower / Yaskawa servo motor and driver |
| Table Surface | Vacuum table + T-slot table |
| Working Voltage | 600V / 415V / 380V / 220V; 50Hz / 60Hz; 3 Phase / 1 Phase |
| X, Y, Z Traveling Positioning Accuracy | ±0.03 / 2000 mm |
| Command Language | G Code |
| Interface | USB |
| Software Compatibility | Vectric VCarve Pro / Cabinet Vision / ArtCAM / E-wood |
| Suitable Applications | Cabinet making, furniture production, signage, panel processing, and industrial woodworking |
| Wood & Wood-Based Panels | Plastics & Acrylic | Composites & Other Materials |
|---|---|---|
| Solid wood | Acrylic | ACM / Aluminum composite panels |
| MDF | PVC | Foam board |
| Plywood | Polycarbonate | Composite fiberboard |
| Particle board | ABS | Solid surface materials |
| OSB board | HDPE | Carbon fiber sheet |
| Laminated wood | HPL | Aluminum |
| Cabinet panels | Plexiglass | Brass |
| Door panels | Nylon | Sign boards |
| Wooden furniture parts | Engineering plastics | Display panels |
| Veneered panels | Plastic sheets | Customized material testing |
Applications of the SPC1325C 3 Axis ATC CNC Router
The SPC1325C is widely used for woodworking, plastic fabrication, signage production, and composite material processing.
Cabinet Making
Furniture Production
Signage Manufacturing
Acrylic & Plastic Fabrication
Interior & Decorative Panels
Composite Material Processing
Need Help Choosing the Right CNC Router?
Tell us your material, working size, application, and production needs. Our team will recommend a suitable CNC router configuration and provide a customized quotation.
Explore Popular ATC CNC Router Models

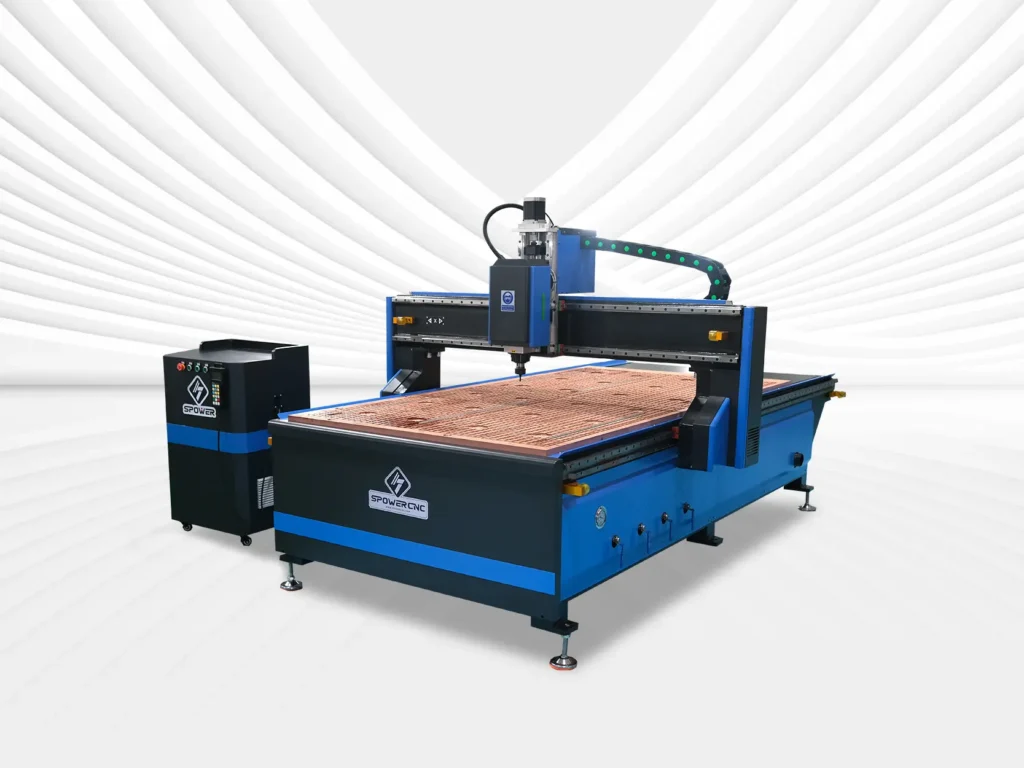

Entry-Level CNC Router
Entry Level
- Manual tool change
- Flexible bed size options
- For wood, MDF, plywood, and acrylic

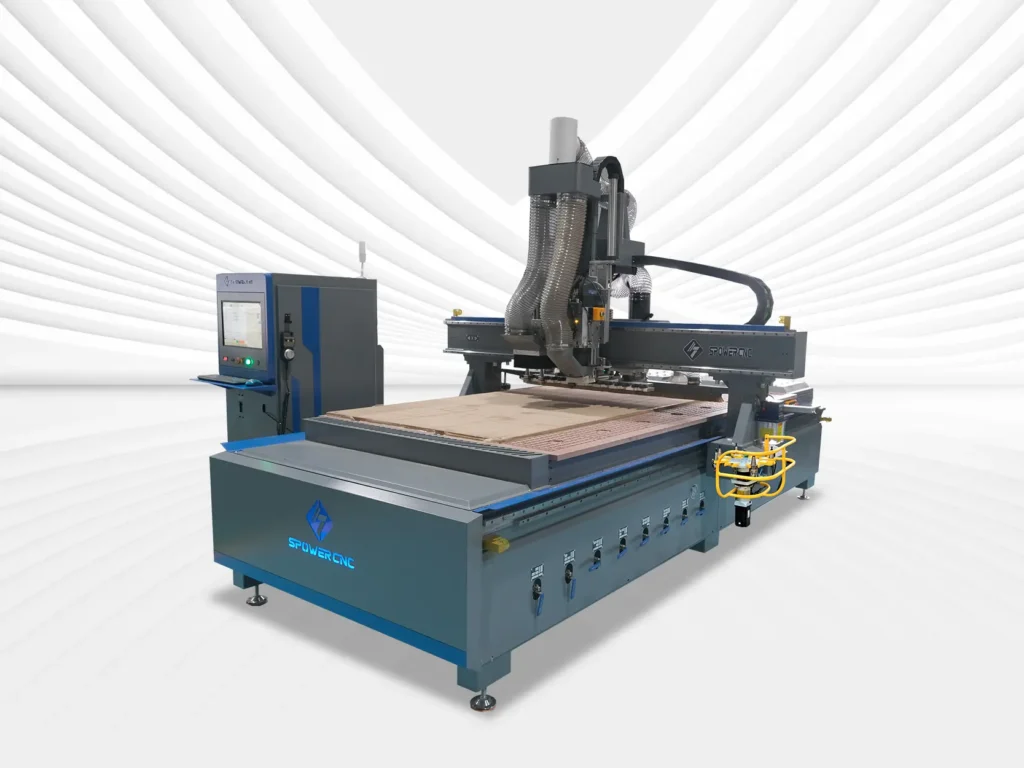

3 Axis ATC CNC Router
Standard Level
- Linear ATC tool changer
- Syntec control system
- Servo motor and heavy-duty frame

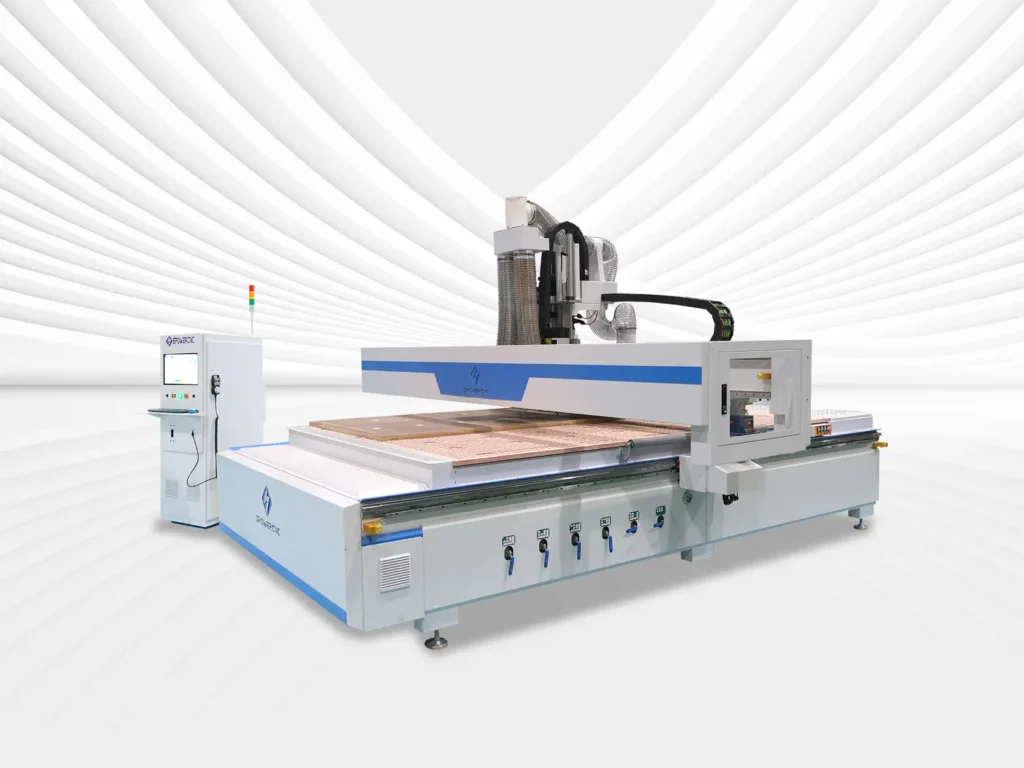

Disc ATC CNC Router
Prefessional Level
- Disc automatic tool changer
- Fast tool switching
- Ideal for batch production

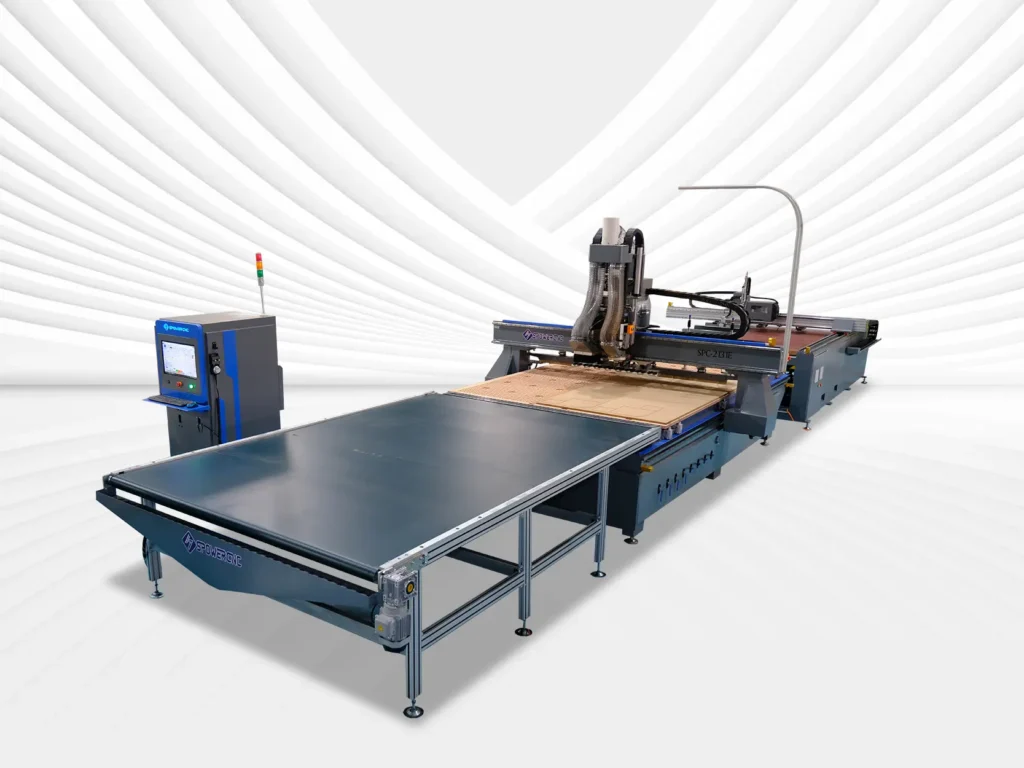

Loading Platform CNC
Advanced Level
- Automatic loading platform
- High production efficiency
- For large-scale panel processing
Core Components & Quality Parts
We partner with world-class component suppliers to ensure long-term stability and precision.
Frequently Asked Questions About the SPC1325C 3 Axis ATC CNC Router
Find answers to common questions about machine configuration, working sizes, materials, tool changing, control system, customization, and after-sales support.
How do I choose the right CNC router configuration?
You can tell us your material type, working size, processing requirements, budget, and target production capacity. Our team will recommend a suitable machine configuration based on your actual workshop needs.
What information should I provide to get an accurate quotation?
Please tell us your required working size, main processing materials, application, power voltage, destination country, and any special configuration requirements.
Can the machine be customized according to my production needs?
Yes. We can discuss customized solutions based on your production process, workshop layout, material type, power supply conditions, and required machine functions.
How long does machine production and delivery usually take?
Production and delivery time depends on the selected configuration, customization requirements, current order schedule, and destination country. Before the order is officially confirmed, we will provide an estimated delivery time.
How is the machine packed for international shipping?
The machine is packed according to export standards to help ensure proper protection during transportation. Specific packaging details and shipping arrangements will be confirmed based on the machine model and destination.
Do you provide installation guidance and operation training?
Yes. We provide installation guidance, basic operation support, and training assistance to help customers understand machine setup, daily operation, and maintenance procedures. Optional on-site installation, commissioning, training, and maintenance services are also available upon request.
What warranty and after-sales support are available after purchase?
We provide a 3-year warranty, lifetime technical support, software upgrade assistance, troubleshooting guidance, and operation support. Customers can communicate online with our after-sales technical team, with 24/7 support and fast response within 2 hours.
Can spare parts and consumables be supplied later?
Yes. We can supply corresponding spare parts and commonly used consumables according to the machine configuration. Customers can enjoy lifetime discounted spare parts supply, and replacement parts can be arranged by providing the machine information and contacting our support team.
